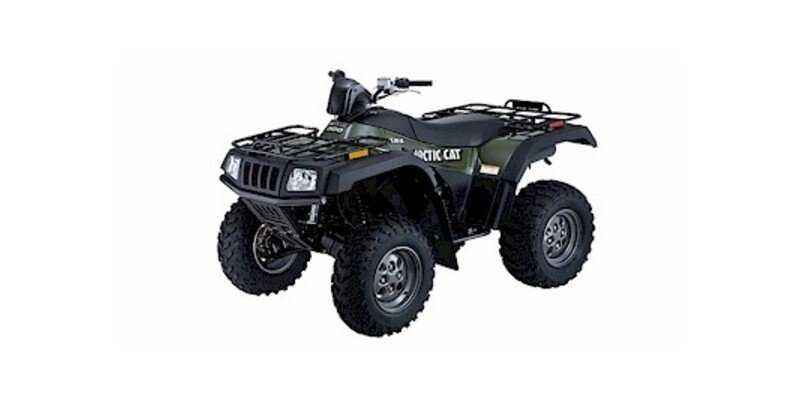

2004 Arctic Cat 500 4x4 Automatic Specifications

Spec, Photos, and Model Information

  • Start Price
    $6,599
  • Displacement (cc)
    493

Vehicle Specifications

2004 Arctic Cat 500 4x4 Automatic

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    4.8
  • Fuel Capacity (l)
    18.1
  • Carburetion Type
    Carburetor
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    50
  • Wheelbase (mm)
    1270
  • Cylinders
    1
  • Displacement (cc)
    493
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric / Pull
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Utility
  • Revision Status
    Upgraded
  • MSRP
    6599
  • Warranty (Months)
    6
  • Tachometer
    Not Available
  • Front Tire (Full Spec)
    AT 25 X 8-12
  • Rear Tire (Full Spec)
    AT 25 X 11-2
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    303.9
  • Dry Weight (lbs)
    670
