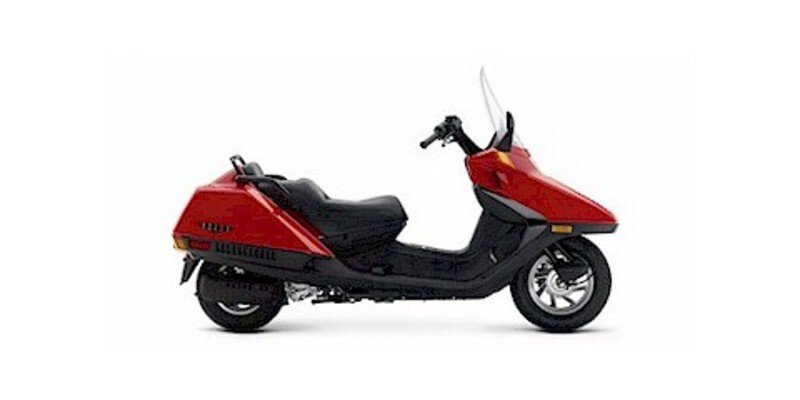

2004 Honda Helix Base Specifications

Vehicle Specifications

2004 Honda Helix Base

• Front Brake Type
  Disc
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  3.2
• Fuel Capacity (l)
  12
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  63.8
• Wheelbase (mm)
  1620.5
• Cylinders
  1
• Displacement (cc)
  244
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Scooter
• Revision Status
  Carryover
• MSRP
  4999
• Warranty (Months)
  12
• Number Of Seats
  2
• Seat Height (in)
  26.2
• Seat Height (mm)
  665.5
• Tachometer
  Not Available
• Front Tire (Full Spec)
  110/100 R12
• Rear Tire (Full Spec)
  120/90 R10
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  159
• Dry Weight (lbs)
  349.4
• Windshield
  Standard
