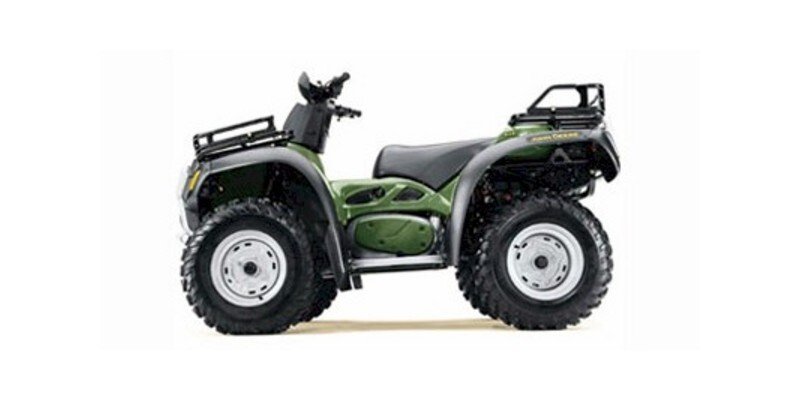

2005 John Deere Other John Deere Models 650 EX Specifications

Vehicle Specifications

2005 John Deere Other John Deere Models 650 EX

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.8
• Fuel Capacity (l)
  22
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  51
• Wheelbase (mm)
  1295
• Compression Ratio
  9.5:1
• Cylinders
  1
• Displacement (cc)
  644
• Engine Brand Name
  4-TEC™ Rotax™
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Torque (Ft Lbs)
  34.7
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  7799
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  37
• Seat Height (mm)
  945
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Carlisle Trail Wolf 25 X 8-12
• Rear Tire (Full Spec)
  Carlisle Trail Wolf 25 X 11-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  324
