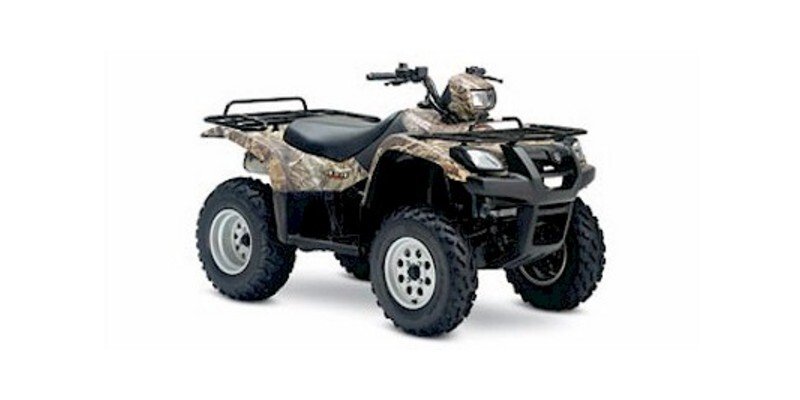

2005 Suzuki Vinson 500 Automatic 500 4X4 Camouflage Edition Specifications

Vehicle Specifications

2005 Suzuki Vinson 500 Automatic 500 4X4 Camouflage Edition

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5
• Fuel Capacity (l)
  18.9
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  50
• Wheelbase (mm)
  1270
• Compression Ratio
  10.2:1
• Cylinders
  1
• Displacement (cc)
  493
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  6699
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  33.9
• Seat Height (mm)
  861.1
• Tachometer
  Not Available
• Front Tire (Full Spec)
  AT 25 X 8-12
• Rear Tire (Full Spec)
  AT 25 X 10-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  274
• Dry Weight (lbs)
  604
