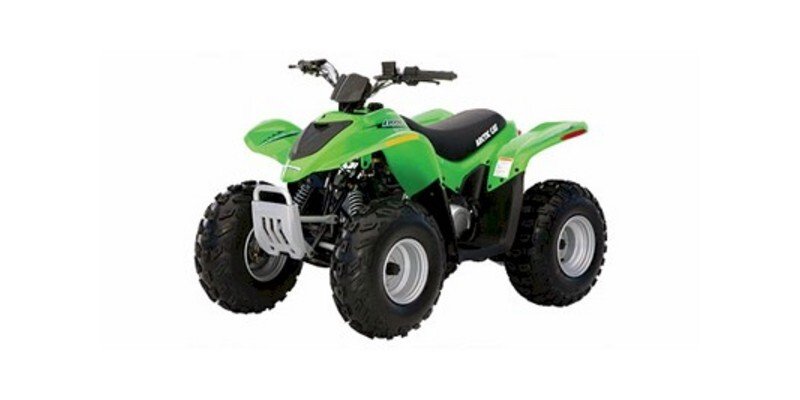

2006 Arctic Cat 90 DVX 2x4 Specifications

Vehicle Specifications

2006 Arctic Cat 90 DVX 2x4

• Front Brake Type
  Drum
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  1.5
• Fuel Capacity (l)
  5.5
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  38.4
• Wheelbase (mm)
  975.4
• Cylinders
  1
• Displacement (cc)
  89.9
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Kick
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Youth
• Revision Status
  New
• MSRP
  2299
• Warranty (Months)
  6
• Number Of Seats
  1
• Tachometer
  Not Available
• Front Tire (Full Spec)
  AT 20 X 7-8
• Rear Tire (Full Spec)
  AT 19 X 8-8
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  117.9
• Dry Weight (lbs)
  260
