2006 Ultra Classic Specifications

Vehicle Specifications

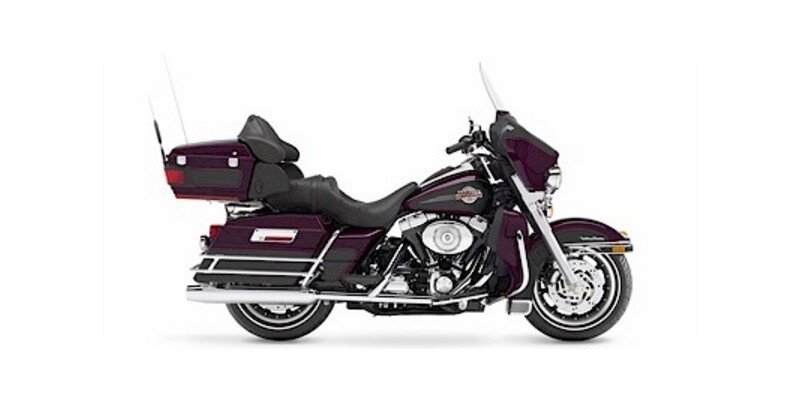

2006 Harley-Davidson Electra Glide Ultra Classic

• Front Brake Type
  Dual Disc
• Rear Brake Type
  Disc
• Fuel Capacity (gal)
  5
• Fuel Capacity (l)
  18.9
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  63.5
• Wheelbase (mm)
  1612.9
• Compression Ratio
  8.9:1
• Cylinders
  2
• Displacement (cc)
  1442.1
• Engine Brand Name
  Twin Cam 88®
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  86
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Touring
• Revision Status
  Upgraded
• MSRP
  19795
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  27.3
• Seat Height (mm)
  693.4
• Tachometer
  Standard
• Front Tire (Full Spec)
  Dunlop MT90B16 72H
• Rear Tire (Full Spec)
  Dunlop MU85B16 77H
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
