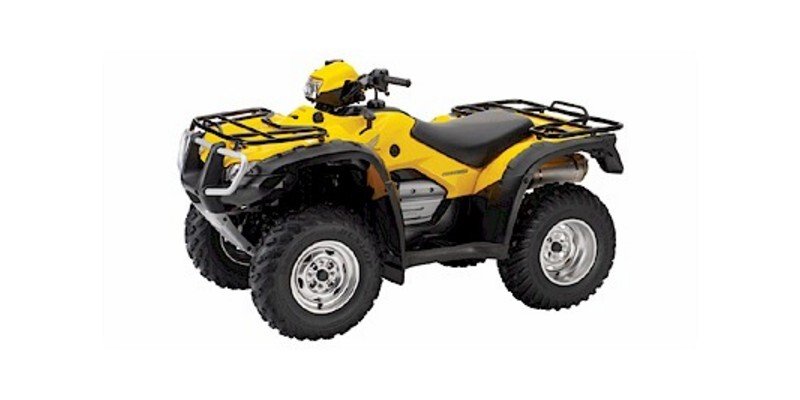

2006 Honda FourTrax Foreman Rubicon GPScape Specifications

Vehicle Specifications

2006 Honda FourTrax Foreman Rubicon GPScape

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Sealed Drum
• Fuel Capacity (gal)
  4.2
• Fuel Capacity (l)
  15.9
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  50.6
• Wheelbase (mm)
  1285.2
• Compression Ratio
  11.5:1
• Cylinders
  1
• Displacement (cc)
  499
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  7499
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  33.9
• Seat Height (mm)
  861.1
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Dunlop® 25 X 8-12
• Rear Tire (Full Spec)
  Dunlop® 25 X 10-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  272.2
• Dry Weight (lbs)
  600
• Windshield
  Not Available
