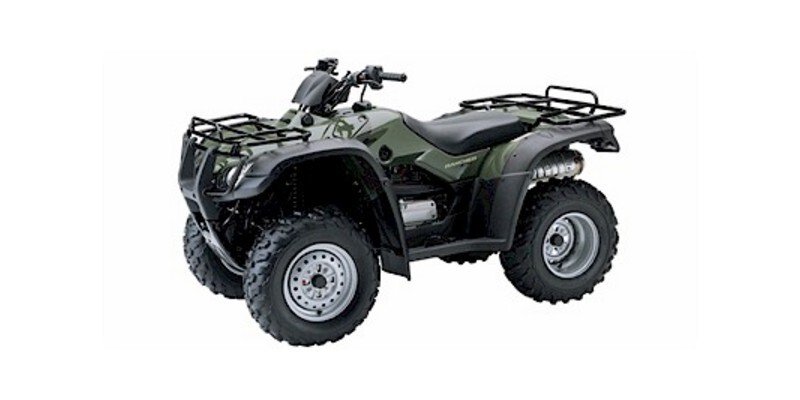

2006 Honda FourTrax Rancher 4X4 ES Specifications

Vehicle Specifications

2006 Honda FourTrax Rancher 4X4 ES

• Front Brake Type
  Sealed Hydraulic Drum
• Rear Brake Type
  Sealed Drum
• Fuel Capacity (gal)
  3.4
• Fuel Capacity (l)
  12.9
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  49.1
• Wheelbase (mm)
  1247.1
• Compression Ratio
  8.7:1
• Cylinders
  1
• Displacement (cc)
  329
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  5299
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  32.4
• Seat Height (mm)
  823
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Bridgestone® 24 X 8-12
• Rear Tire (Full Spec)
  Bridgestone® 24 X 9-11
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Manual / Automatic Clutch
• Dry Weight (kg)
  242.7
• Dry Weight (lbs)
  535
