2006 90E Specifications

Vehicle Specifications

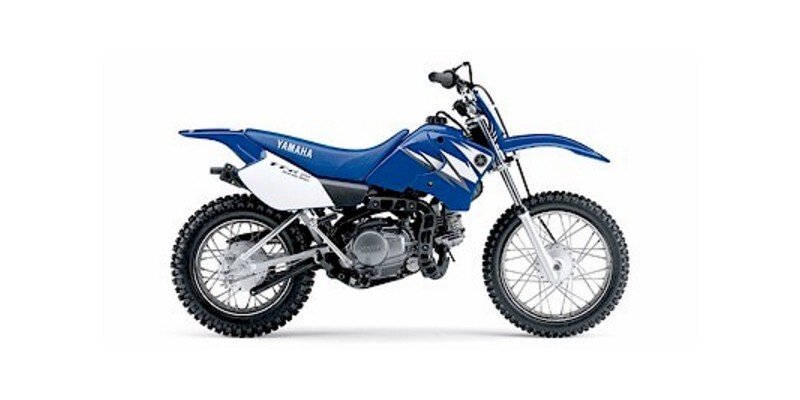

2006 Yamaha TT-R110E 90E

• Front Brake Type
  Drum
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  1.1
• Fuel Capacity (l)
  4.2
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  40.9
• Wheelbase (mm)
  1038.9
• Compression Ratio
  8.5:1
• Cylinders
  1
• Displacement (cc)
  89
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Kick
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Youth
• Revision Status
  Carryover
• MSRP
  1699
• Warranty (Months)
  3
• Number Of Seats
  1
• Seat Height (in)
  24.6
• Seat Height (mm)
  624.8
• Tachometer
  Not Available
• Front Tire (Full Spec)
  2.5 X 14
• Rear Tire (Full Spec)
  3 X 12
• Number Of Speeds
  3
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual / Automatic Clutch
• Dry Weight (kg)
  63.1
• Dry Weight (lbs)
  139
