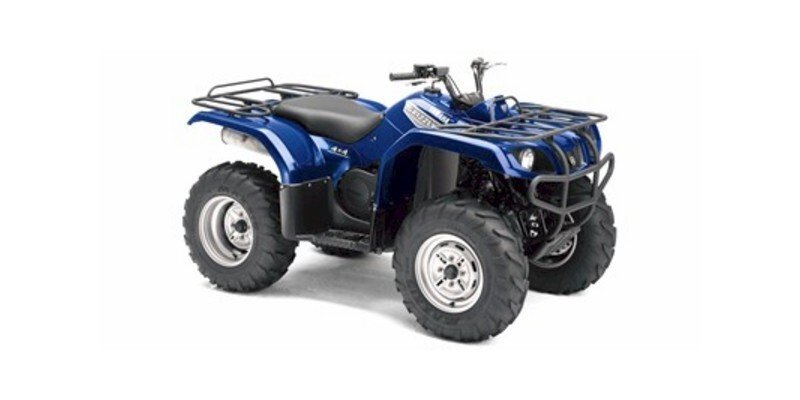

2007 Yamaha Grizzly 125 350 Auto 4x4 Specifications

Vehicle Specifications

2007 Yamaha Grizzly 125 350 Auto 4x4

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Sealed Drum
• Fuel Capacity (gal)
  3.8
• Fuel Capacity (l)
  14.4
• Carburetion Type
  Carburetor
• Wheelbase (in)
  48.5
• Wheelbase (mm)
  1231.9
• Compression Ratio
  9.2:1
• Cylinders
  1
• Displacement (cc)
  348
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  New
• MSRP
  5099
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  32.6
• Seat Height (mm)
  828
• Front Tire (Full Spec)
  Maxxis® AT25 x 8 - 12
• Rear Tire (Full Spec)
  Maxxis® AT25 x 10 - 12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  243
• Dry Weight (lbs)
  536
