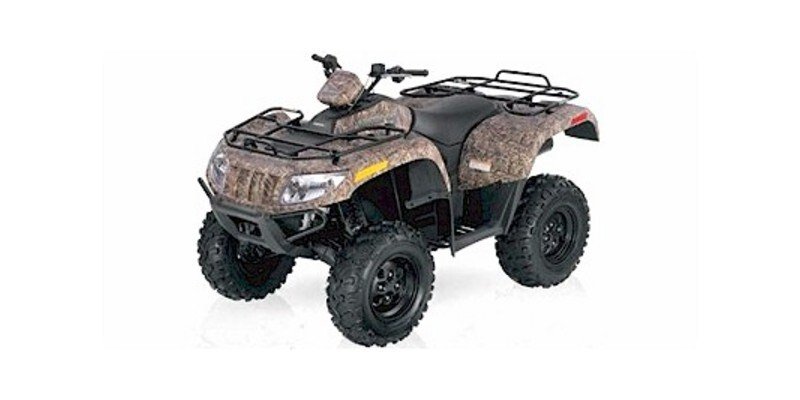

2008 Arctic Cat 500 4x4 Automatic M4 Specifications

Vehicle Specifications

2008 Arctic Cat 500 4x4 Automatic M4

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  6.5
• Fuel Capacity (l)
  24.6
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  50
• Wheelbase (mm)
  1270
• Cylinders
  1
• Displacement (cc)
  493
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  7199
• Warranty (Months)
  6
• Number Of Seats
  1
• Tachometer
  Standard
• Front Tire (Full Spec)
  AT 25 X 8-12
• Rear Tire (Full Spec)
  AT 25 X 10-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  305.7
• Dry Weight (lbs)
  674
