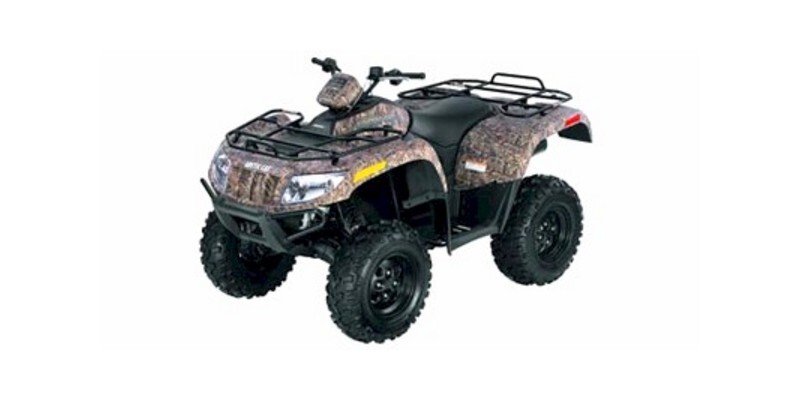

2009 Arctic Cat 550 H1 EFI 4x4 Specifications

Spec, Photos, and Model Information

  • Start Price
    $7,399
  • Displacement (cc)
    545

Vehicle Specifications

2009 Arctic Cat 550 H1 EFI 4x4

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    6.5
  • Fuel Capacity (l)
    24.6
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    50
  • Wheelbase (mm)
    1270
  • Cylinders
    1
  • Displacement (cc)
    545
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric / Pull
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Utility
  • Revision Status
    New
  • MSRP
    7399
  • Warranty (Months)
    6
  • Number Of Seats
    1
  • Tachometer
    Standard
  • Front Tire (Full Spec)
    AT 25 X 8-12
  • Rear Tire (Full Spec)
    AT 25 X 10-12
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    313.9
  • Dry Weight (lbs)
    692
