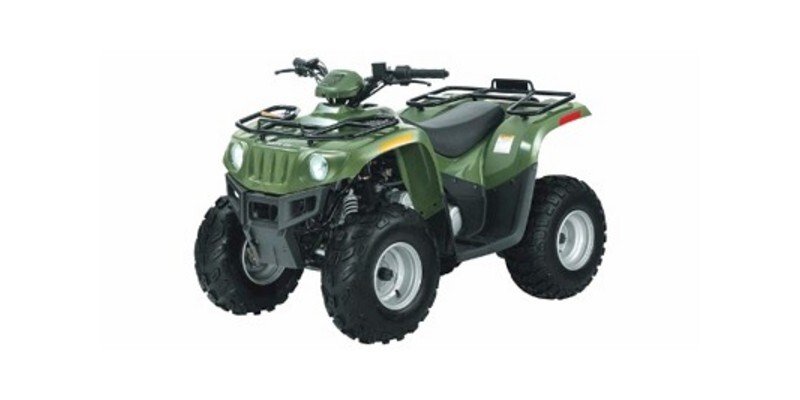

2009 Arctic Cat 90 SE Specifications

Spec, Photos, and Model Information

  • Start Price
    $2,599
  • Displacement (cc)
    90

Vehicle Specifications

2009 Arctic Cat 90 SE

  • Front Brake Type
    Drum
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    1.5
  • Fuel Capacity (l)
    5.5
  • Carburetion Type
    Carburetor
  • Digital Instrumentation
    Not Available
  • Wheelbase (in)
    38.4
  • Wheelbase (mm)
    975.4
  • Cylinders
    1
  • Displacement (cc)
    90
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric / Kick
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Youth
  • Revision Status
    Upgraded
  • MSRP
    2599
  • Warranty (Months)
    6
  • Number Of Seats
    1
  • Tachometer
    Not Available
  • Front Tire (Full Spec)
    AT 20 X 7-8
  • Rear Tire (Full Spec)
    AT 19 X 8-8
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    120.2
  • Dry Weight (lbs)
    265
  • Windshield
    Not Available
