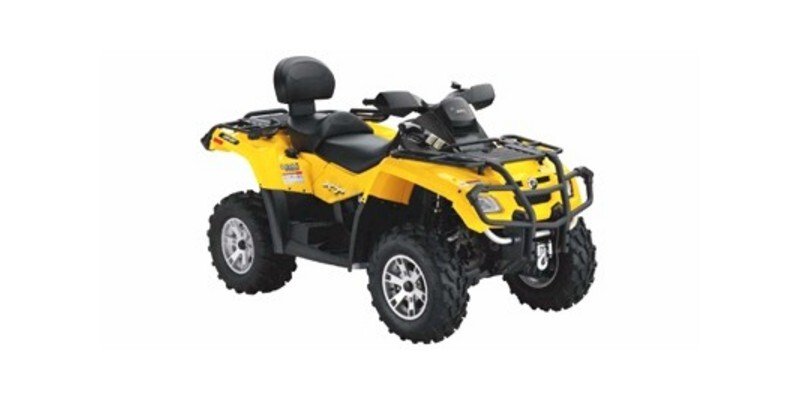

2009 Can-Am Outlander MAX 400 500 EFI XT Specifications

Vehicle Specifications

2009 Can-Am Outlander MAX 400 500 EFI XT

• Front Brake Type
  In-Board Dual Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.3
• Fuel Capacity (l)
  20
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  59
• Wheelbase (mm)
  1499
• Cylinders
  2
• Displacement (cc)
  499.6
• Engine Brand Name
  Rotax®
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  31
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  9399
• Warranty (Months)
  6
• Number Of Seats
  2
• Seat Height (in)
  34.5
• Seat Height (mm)
  877
• Tachometer
  Standard
• Front Tire (Full Spec)
  Carlisle ACT 25 X 8-12
• Rear Tire (Full Spec)
  Carlisle ACT 25 X 11-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  312
• Dry Weight (lbs)
  688
