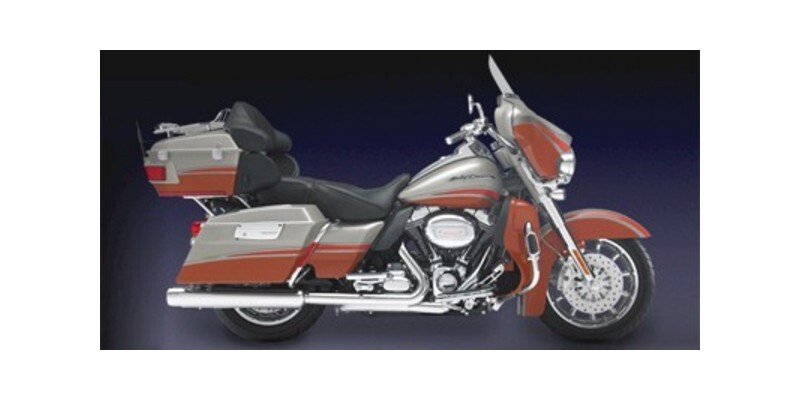

2009 Harley-Davidson Electra Glide CVO Ultra Classic Specifications

Vehicle Specifications

2009 Harley-Davidson Electra Glide CVO Ultra Classic

• Front Brake Type
  Dual Disc
• Rear Brake Type
  Disc
• Fuel Capacity (gal)
  6
• Fuel Capacity (l)
  22.7
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  63.5
• Wheelbase (mm)
  1612.9
• Compression Ratio
  9.2:1
• Cylinders
  2
• Displacement (cc)
  1802.6
• Engine Brand Name
  Twin Cam 110™
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  113
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Touring
• Revision Status
  Upgraded
• MSRP
  35499
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  27.4
• Seat Height (mm)
  696
• Tachometer
  Standard
• Front Tire (Full Spec)
  Dunlop® D407F BW 130/80 B17 65H
• Rear Tire (Full Spec)
  Dunlop® D407 BW 180/65 B16 81H
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
