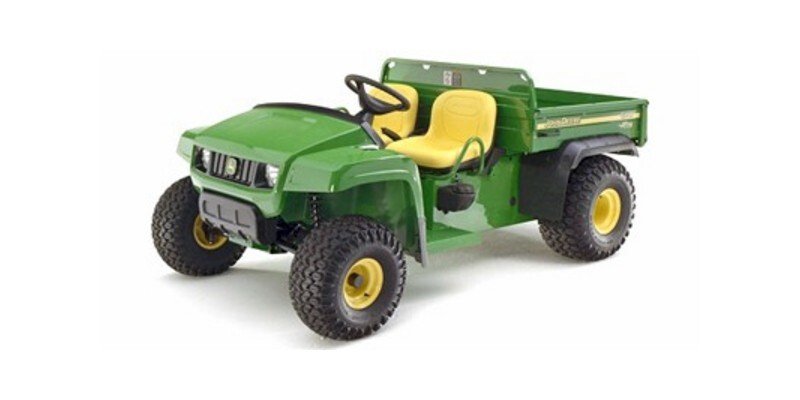

2009 John Deere Gator TS 4x2 Specifications

Vehicle Specifications

2009 John Deere Gator TS 4x2

• Front Brake Type
  Not Available
• Rear Brake Type
  Wet Disc In Transaxle
• Fuel Capacity (gal)
  5.2
• Fuel Capacity (l)
  20
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  69.7
• Wheelbase (mm)
  1770
• Cylinders
  1
• Displacement (cc)
  351
• Engine Brand Name
  Kawasaki
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  11.1
• Starter
  Electric
• Torque (Ft Lbs)
  17.4
• Valve Configuration
  OHV
• Generic Type (Primary)
  Turf
• Revision Status
  Carryover
• MSRP
  6569
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Not Available
• Front Tire (Full Spec)
  22.5 x 10 - 8, 2 PR
• Rear Tire (Full Spec)
  25 x 12 - 9, 2 PR
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  415
• Dry Weight (lbs)
  915
