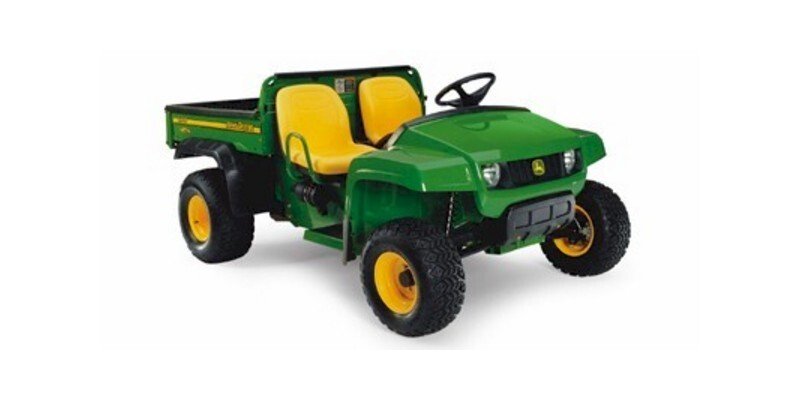

2009 John Deere Gator TX 4x2 Specifications

Vehicle Specifications

2009 John Deere Gator TX 4x2

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Dual Hydraulic Disc
• Fuel Capacity (gal)
  5.2
• Fuel Capacity (l)
  20
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  72.5
• Wheelbase (mm)
  1841
• Cylinders
  1
• Displacement (cc)
  401
• Engine Brand Name
  Kawasaki
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  13
• Starter
  Electric
• Torque (Ft Lbs)
  19.5
• Valve Configuration
  OHV
• Generic Type (Primary)
  Turf
• Revision Status
  Carryover
• MSRP
  7199
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Not Available
• Front Tire (Full Spec)
  22 x 9.5 - 10, 4 PR
• Rear Tire (Full Spec)
  24 x 10.5 - 10, HPAP
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  468
• Dry Weight (lbs)
  1032
