2009 Z50 Special Edition Specifications

Vehicle Specifications

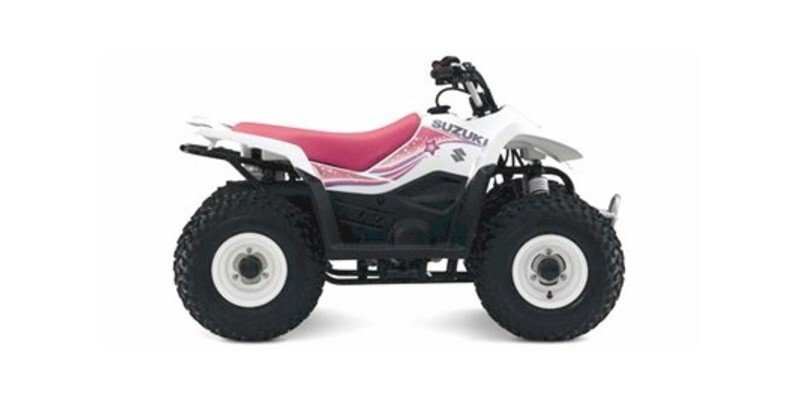

2009 Suzuki QuadSport 160 Z50 Special Edition

• Front Brake Type
  Dual Drum
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  0.7
• Fuel Capacity (l)
  2.6
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  32.7
• Wheelbase (mm)
  830
• Compression Ratio
  8.4:1
• Cylinders
  1
• Displacement (cc)
  49
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Youth
• Revision Status
  New
• MSRP
  1899
• Warranty (Months)
  12
• Number Of Seats
  1
• Seat Height (in)
  21.1
• Seat Height (mm)
  535
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Dunlop® AT 16 X 8-7
• Rear Tire (Full Spec)
  Dunlop® AT 16 X 8-7
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Continuously Variable (CVT)
• Windshield
  Not Available
