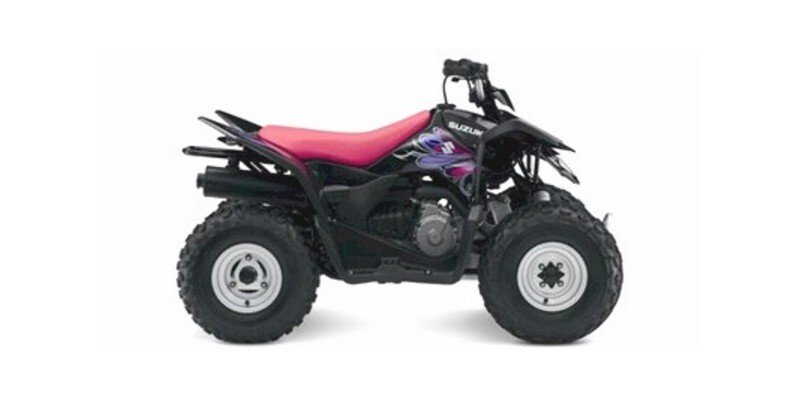

2009 Z90 Special Edition Specifications

Vehicle Specifications

2009 Suzuki QuadSport 160 Z90 Special Edition

• Front Brake Type
  Dual Drum
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  1.6
• Fuel Capacity (l)
  6
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  39.6
• Wheelbase (mm)
  1005
• Compression Ratio
  9.5:1
• Cylinders
  1
• Displacement (cc)
  90
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Pull
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Youth
• Revision Status
  New
• MSRP
  2499
• Warranty (Months)
  12
• Number Of Seats
  1
• Seat Height (in)
  25.6
• Seat Height (mm)
  650
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Dunlop® AT 19 X 7-8
• Rear Tire (Full Spec)
  Dunlop® AT 19 X 7-8
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Continuously Variable (CVT)
• Windshield
  Not Available
