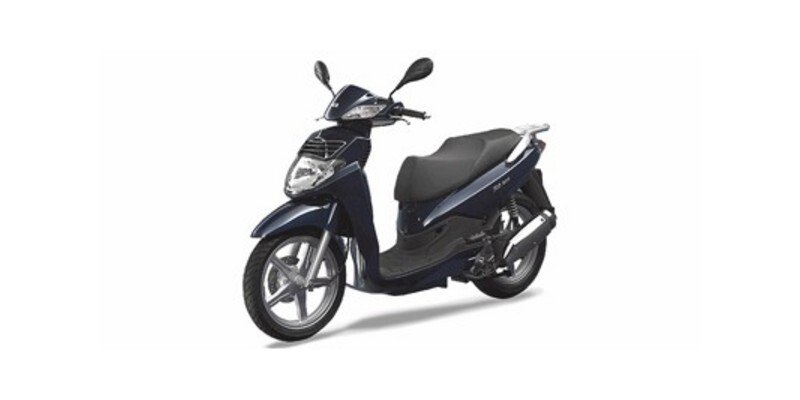

2009 SYM HD 200 200 Specifications

Vehicle Specifications

2009 SYM HD 200 200

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  2.1
• Fuel Capacity (l)
  8
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  54.5
• Wheelbase (mm)
  1385
• Compression Ratio
  10.8:1
• Cylinders
  1
• Displacement (cc)
  171.2
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  15.3
• Starter
  Electric / Kick
• Torque (Ft Lbs)
  11.3
• Valve Configuration
  OHV
• Generic Type (Primary)
  Scooter
• Revision Status
  Carryover
• MSRP
  3798
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  31
• Seat Height (mm)
  787.4
• Tachometer
  Not Available
• Front Tire (Full Spec)
  100 / 80 - 16
• Rear Tire (Full Spec)
  120 / 80 - 16
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  135
