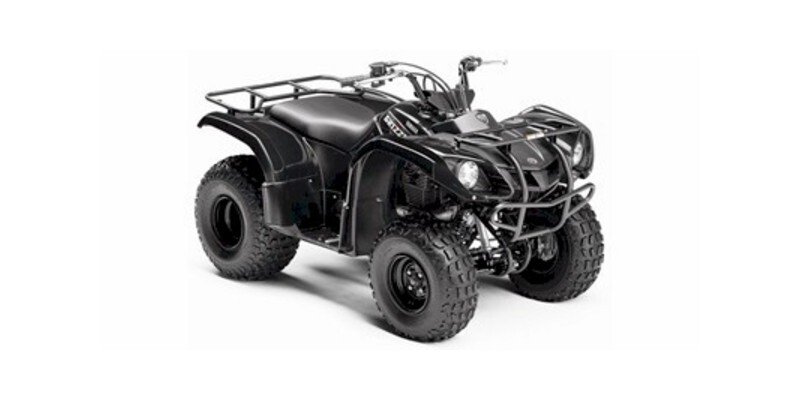

2009 Yamaha Grizzly 125 125 Automatic Specifications

Vehicle Specifications

2009 Yamaha Grizzly 125 125 Automatic

• Front Brake Type
  Dual Sealed Drum
• Rear Brake Type
  Sealed Drum
• Fuel Capacity (gal)
  2
• Fuel Capacity (l)
  7.6
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  42.5
• Wheelbase (mm)
  1079.5
• Compression Ratio
  9.0:1
• Cylinders
  1
• Displacement (cc)
  124
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  3399
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  27
• Seat Height (mm)
  685.8
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Dunlop® AT 20 x 7-8
• Rear Tire (Full Spec)
  Dunlop® AT 22 x 10-8
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  138.8
• Dry Weight (lbs)
  306
• Windshield
  Not Available
