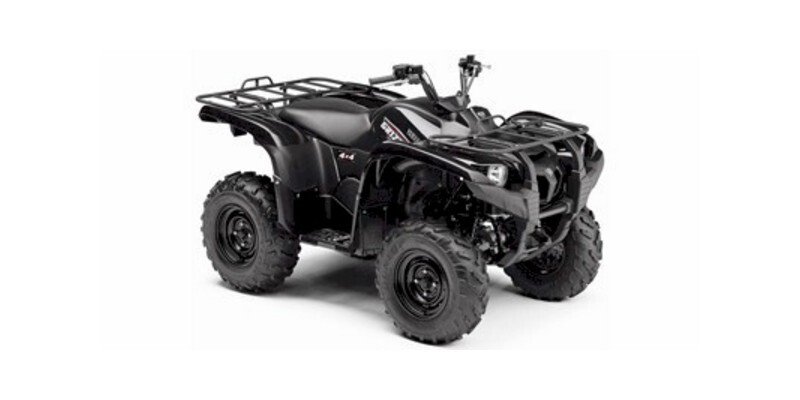

2009 Yamaha Grizzly 125 550 FI Auto 4x4 Specifications

Vehicle Specifications

2009 Yamaha Grizzly 125 550 FI Auto 4x4

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Dual Hydraulic Disc
• Fuel Capacity (gal)
  5.3
• Fuel Capacity (l)
  20.1
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  49.2
• Wheelbase (mm)
  1249.68
• Compression Ratio
  9.3:1
• Cylinders
  1
• Displacement (cc)
  558
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  New
• MSRP
  7499
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  35.6
• Seat Height (mm)
  904.2
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Dunlop® AT25 x 8 - 12
• Rear Tire (Full Spec)
  Dunlop® AT25 x 10 - 12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  272.2
• Dry Weight (lbs)
  600
