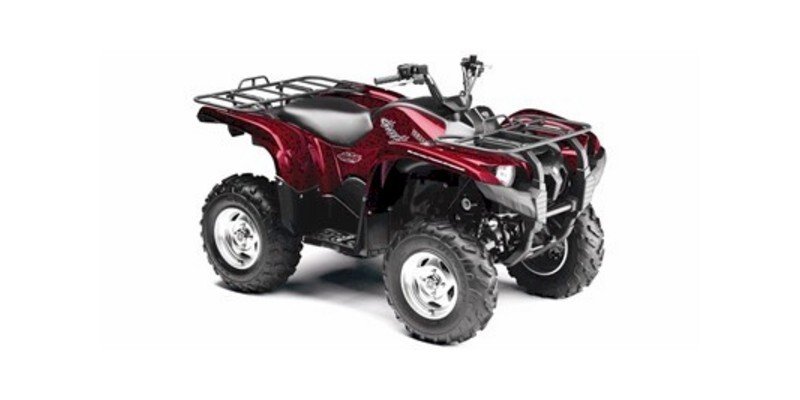

2009 Yamaha Grizzly 125 700 FI Auto 4x4 EPS Special Edition Specifications

Spec, Photos, and Model Information

  • Start Price
    $9,599
  • Displacement (cc)
    686

Vehicle Specifications

2009 Yamaha Grizzly 125 700 FI Auto 4x4 EPS Special Edition

  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Dual Hydraulic Disc
  • Fuel Capacity (gal)
    5.3
  • Fuel Capacity (l)
    20.1
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    49.2
  • Wheelbase (mm)
    1249.7
  • Compression Ratio
    9.2:1
  • Cylinders
    1
  • Displacement (cc)
    686
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Utility
  • Revision Status
    New
  • MSRP
    9599
  • Warranty (Months)
    6
  • Number Of Seats
    1
  • Seat Height (in)
    35.6
  • Seat Height (mm)
    904.2
  • Tachometer
    Not Available
  • Front Tire (Full Spec)
    DunlopĀ® AT25 x 8 - 12
  • Rear Tire (Full Spec)
    DunlopĀ® AT25 x 10 - 12
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    272.2
  • Dry Weight (lbs)
    600
