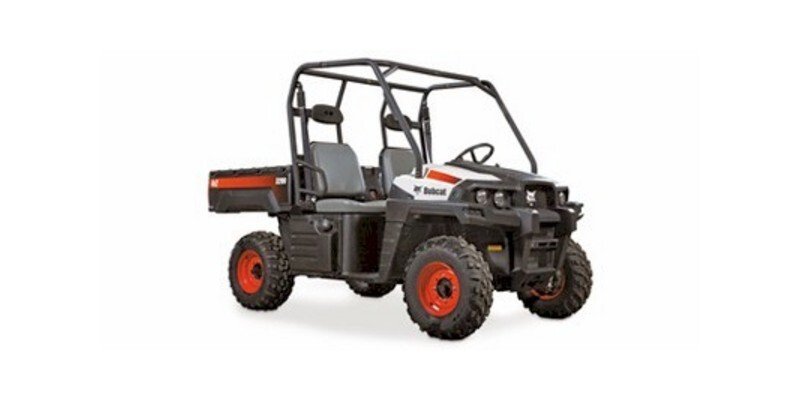

2010 Bobcat 3400 4x4 Diesel Specifications

Vehicle Specifications

2010 Bobcat 3400 4x4 Diesel

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  9
• Fuel Capacity (l)
  34.1
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  76
• Wheelbase (mm)
  1930
• Cylinders
  3
• Displacement (cc)
  904
• Engine Brand Name
  Yanmar
• Engine Stroke
  4-Stroke
• Engine Type
  Longitudinal In-Line
• Horsepower (bhp)
  24.8
• Starter
  Electric
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  New
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Not Available
• Front Tire (Full Spec)
  All Terrain
• Rear Tire (Full Spec)
  All Terrain
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  653
• Dry Weight (lbs)
  1610
