2010 Harley-Davidson Softail Fat Boy Lo Specifications

Vehicle Specifications

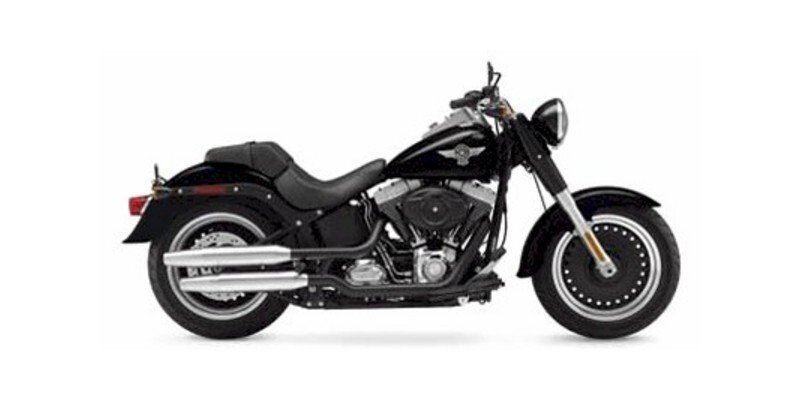

2010 Harley-Davidson Softail Fat Boy Lo

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5
• Fuel Capacity (l)
  18.9
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  64.5
• Wheelbase (mm)
  1638.3
• Compression Ratio
  9.2:1
• Cylinders
  2
• Displacement (cc)
  1584
• Engine Brand Name
  Twin Cam 96B™
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  93.7
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Cruiser
• Revision Status
  New
• MSRP
  16299
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  24.3
• Seat Height (mm)
  617.2
• Front Tire (Full Spec)
  Dunlop® 140/75 R17 67V
• Rear Tire (Full Spec)
  Dunlop® 200/55 R17 78V
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
• Dry Weight (kg)
  317.5
