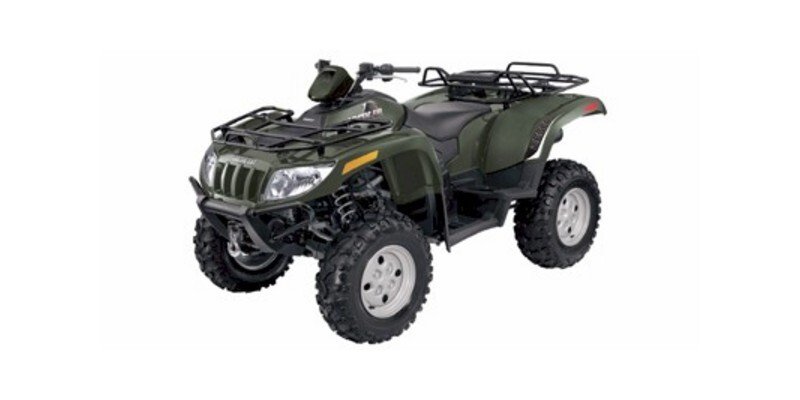

2012 Super Duty Diesel Specifications

Vehicle Specifications

2012 Arctic Cat 700 Super Duty Diesel

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.3
• Fuel Capacity (l)
  20.1
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  58
• Wheelbase (mm)
  1473
• Cylinders
  2
• Displacement (cc)
  686
• Engine Stroke
  4-Stroke
• Engine Type
  In-Line
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  10299
• Warranty (Months)
  6
• Number Of Seats
  1
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Duro Red Eagle 25 X 8-12
• Rear Tire (Full Spec)
  Duro Red Eagle 25 X 10-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  382.8
• Dry Weight (lbs)
  844
