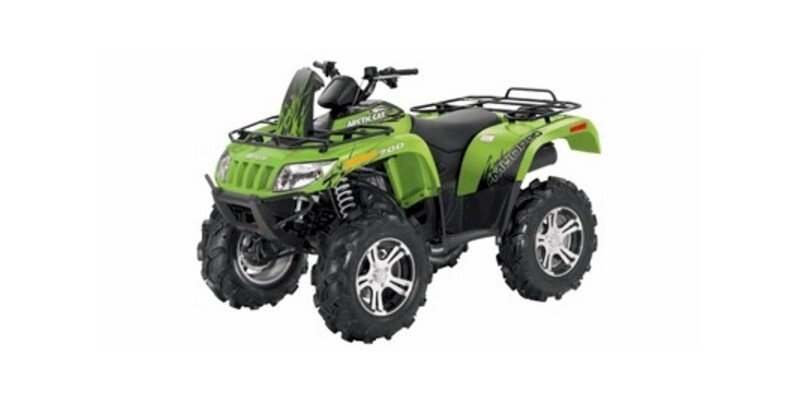

2012 Arctic Cat 700i H1 EFI MudPro 4x4 Specifications

Vehicle Specifications

2012 Arctic Cat 700i H1 EFI MudPro 4x4

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.7
• Fuel Capacity (l)
  21.6
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  50
• Wheelbase (mm)
  1270
• Cylinders
  1
• Displacement (cc)
  695
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  10299
• Warranty (Months)
  6
• Number Of Seats
  1
• Tachometer
  Standard
• Front Tire (Full Spec)
  Maxxis Zilla 28 X 9-14
• Rear Tire (Full Spec)
  Maxxis Zilla 28 X 11-14
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  353.8
• Dry Weight (lbs)
  780
