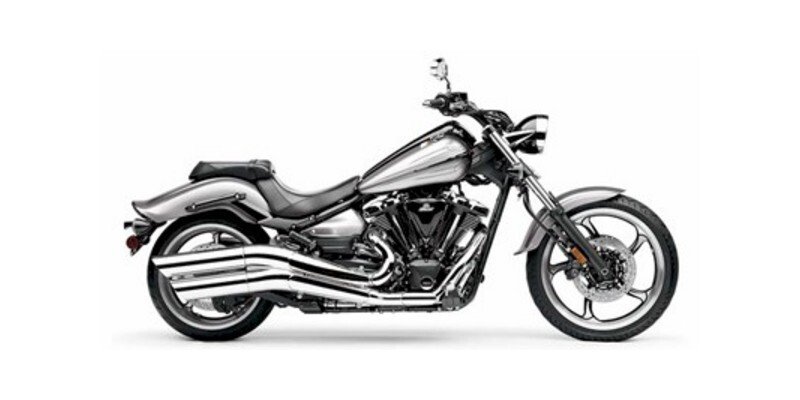

2012 Yamaha Raider Base Specifications

Vehicle Specifications

2012 Yamaha Raider Base

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  4.2
• Fuel Capacity (l)
  15.9
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  70.9
• Wheelbase (mm)
  1800.9
• Compression Ratio
  9.48:1
• Cylinders
  2
• Displacement (cc)
  1854
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Cruiser
• Revision Status
  Carryover
• MSRP
  14590
• Warranty (Months)
  12
• Number Of Seats
  2
• Seat Height (in)
  27.4
• Seat Height (mm)
  696
• Tachometer
  Not Available
• Front Tire (Full Spec)
  120/70-21
• Rear Tire (Full Spec)
  210/40-18
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
• Dry Weight (kg)
  313.9
• Dry Weight (lbs)
  692
