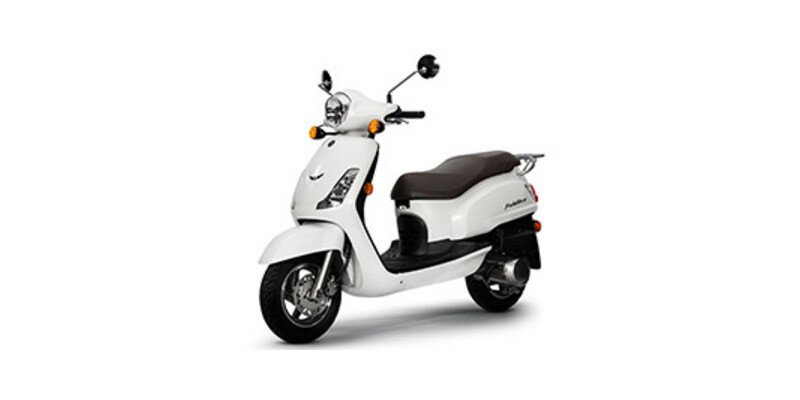

2013 SYM Fiddle 125 125 Specifications

Vehicle Specifications

2013 SYM Fiddle 125 125

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  1.3
• Fuel Capacity (l)
  5
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  52
• Wheelbase (mm)
  1320.8
• Compression Ratio
  9.6:1
• Cylinders
  1
• Displacement (cc)
  124.6
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  8.4
• Starter
  Electric / Kick
• Torque (Ft Lbs)
  6.1
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Scooter
• Revision Status
  Carryover
• MSRP
  2299
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  29.5
• Seat Height (mm)
  749.3
• Tachometer
  Not Available
• Front Tire (Full Spec)
  3.5 X 10
• Rear Tire (Full Spec)
  3.5 X 10
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  108.9
