2014 Arctic Cat Prowler 500 500 HDX XT Specifications

Spec, Photos, and Model Information

  • Start Price
    $11,699
  • Displacement (cc)
    443

Vehicle Specifications

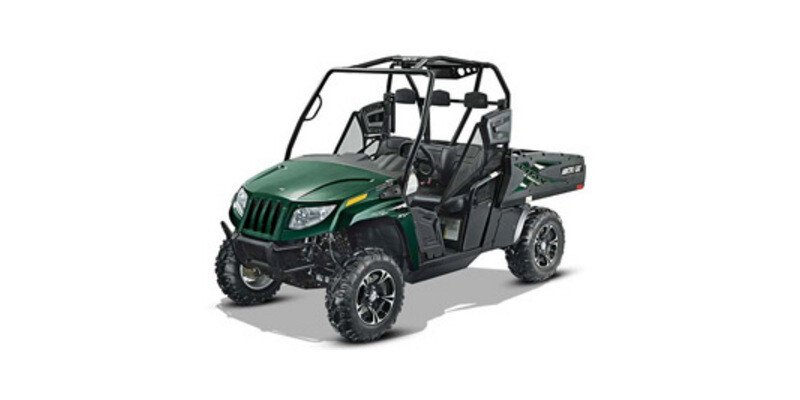

2014 Arctic Cat Prowler 500 500 HDX XT

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    8.2
  • Fuel Capacity (l)
    31
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    85
  • Wheelbase (mm)
    2159
  • Cylinders
    1
  • Displacement (cc)
    443
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Utility
  • Revision Status
    New
  • MSRP
    11699
  • Warranty (Months)
    6
  • Number Of Seats
    3
  • Tachometer
    Standard
  • Front Tire (Full Spec)
    Duro 3 Star Kaden AT 26 X 9-14
  • Rear Tire (Full Spec)
    Duro 3 Star Kaden AT 26 X 11-14
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    605.6
  • Dry Weight (lbs)
    1335
