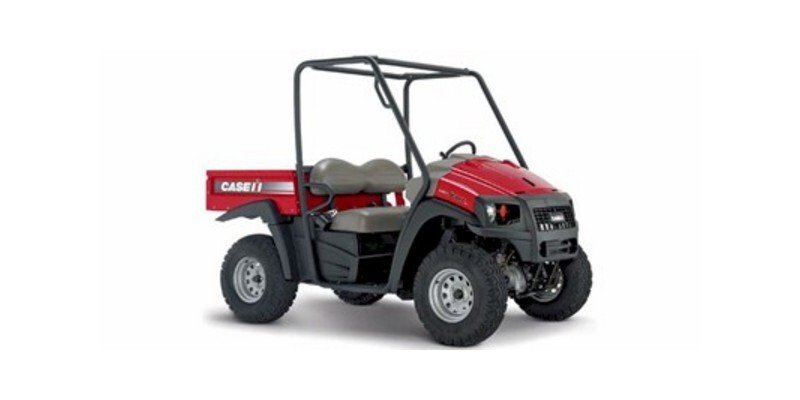

2014 Case IH Scout Gas 2-Passenger Specifications

Vehicle Specifications

2014 Case IH Scout Gas 2-Passenger

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.2
• Fuel Capacity (l)
  19.7
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  69.5
• Wheelbase (mm)
  1765
• Compression Ratio
  8.2:1
• Cylinders
  2
• Displacement (cc)
  480
• Engine Brand Name
  Briggs & Stratton Vanguard
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Horsepower (bhp)
  14
• Starter
  Electric
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  9556
• Warranty (Months)
  24
• Number Of Seats
  2
• Tachometer
  Not Available
• Front Tire (Full Spec)
  All Terrain: 25 X 9 -12
• Rear Tire (Full Spec)
  All Terrain: 25 X 11 -12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  578.3
• Dry Weight (lbs)
  1275
