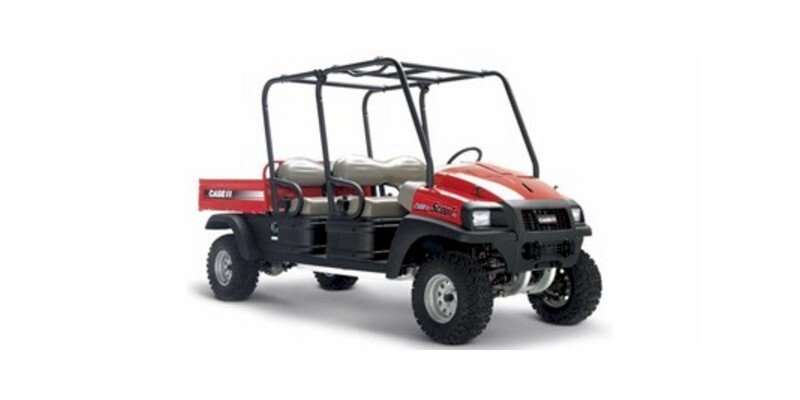

2014 XL Gas 4-Passenger Specifications

Vehicle Specifications

2014 Case IH Scout XL Gas 4-Passenger

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  6.5
• Fuel Capacity (l)
  24.6
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  114
• Wheelbase (mm)
  2896
• Cylinders
  2
• Displacement (cc)
  675
• Engine Brand Name
  Kawasaki
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Horsepower (bhp)
  23
• Starter
  Electric
• Torque (Ft Lbs)
  34.2
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  16023
• Warranty (Months)
  24
• Number Of Seats
  4
• Tachometer
  Not Available
• Front Tire (Full Spec)
  All Terrain: 25 X 10.5 - 12
• Rear Tire (Full Spec)
  All Terrain: 25 X 10.5 - 12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  739
• Dry Weight (lbs)
  1630
