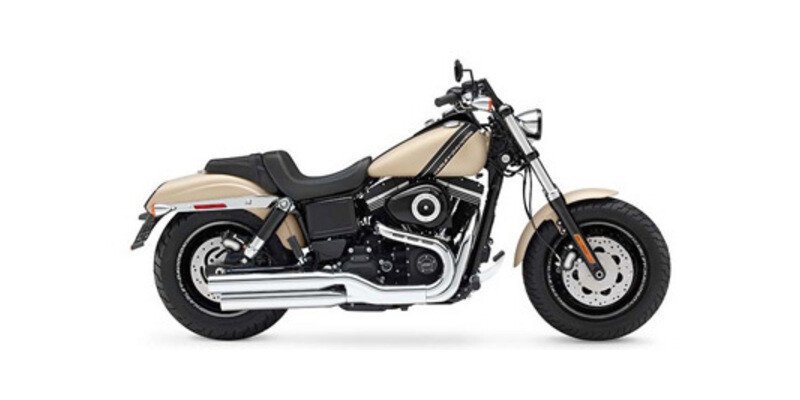

2015 Harley-Davidson Dyna Fat Bob Specifications

Vehicle Specifications

2015 Harley-Davidson Dyna Fat Bob

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5
• Fuel Capacity (l)
  18.9
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  63.8
• Wheelbase (mm)
  1620.5
• Compression Ratio
  9.6:1
• Cylinders
  2
• Displacement (cc)
  1689.5
• Engine Brand Name
  Twin Cam 103™
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  98.8
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Cruiser
• Revision Status
  Carryover
• MSRP
  15699
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  27.2
• Seat Height (mm)
  690.9
• Tachometer
  Standard
• Front Tire (Full Spec)
  Michelin® Scorcher™ 130/90 R16 67H
• Rear Tire (Full Spec)
  Michelin® Scorcher™ 180/70 R16 77H
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
