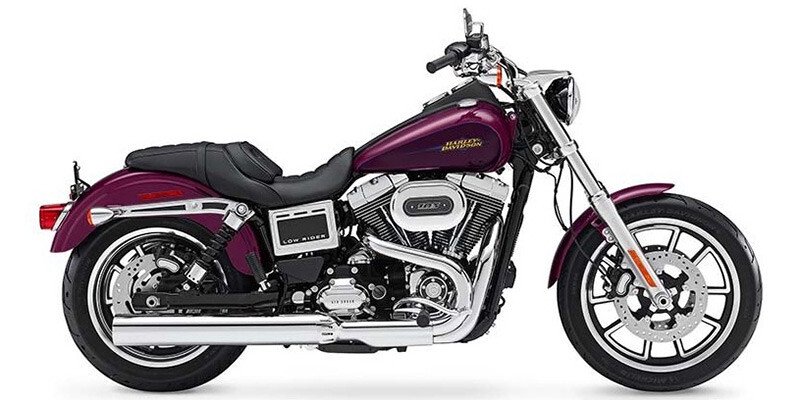

2016 Harley-Davidson Dyna Low Rider Specifications

Vehicle Specifications

2016 Harley-Davidson Dyna Low Rider

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  4.7
• Fuel Capacity (l)
  17.8
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  64.2
• Wheelbase (mm)
  1630.7
• Compression Ratio
  9.6:1
• Cylinders
  2
• Displacement (cc)
  1689.5
• Engine Brand Name
  High-Output Twin Cam 103™
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  102
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Cruiser
• Revision Status
  Upgraded
• MSRP
  14399
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  26.8
• Seat Height (mm)
  680.7
• Tachometer
  Standard
• Front Tire (Full Spec)
  Michelin® Scorcher™ 100/90 R19 57H
• Rear Tire (Full Spec)
  Michelin® Scorcher™ 160/70 R17 73V
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
