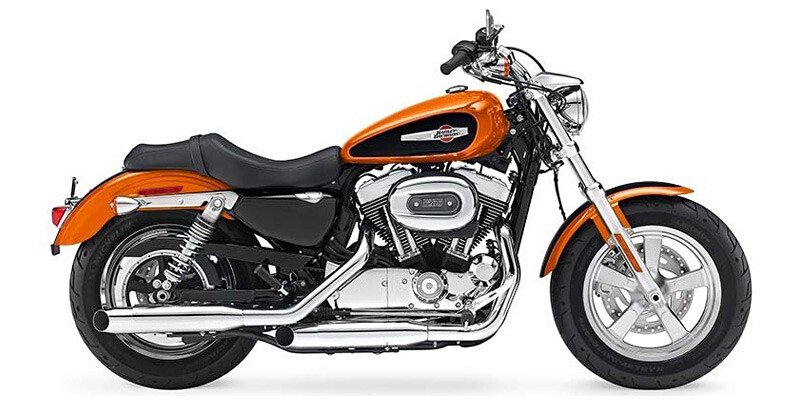

2016 Harley-Davidson Sportster 1200 Custom Specifications

Vehicle Specifications

2016 Harley-Davidson Sportster 1200 Custom

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  4.5
• Fuel Capacity (l)
  17
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  59.8
• Wheelbase (mm)
  1518.9
• Compression Ratio
  10.0:1
• Cylinders
  2
• Displacement (cc)
  1202.8
• Engine Brand Name
  Evolution®
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  70.8
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Standard
• Revision Status
  Upgraded
• MSRP
  10889
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  28
• Seat Height (mm)
  711.2
• Tachometer
  Standard
• Front Tire (Full Spec)
  Michelin® Scorcher™ 130/90 R16 73H
• Rear Tire (Full Spec)
  Michelin® Scorcher™ 150/80 R16 77H
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
