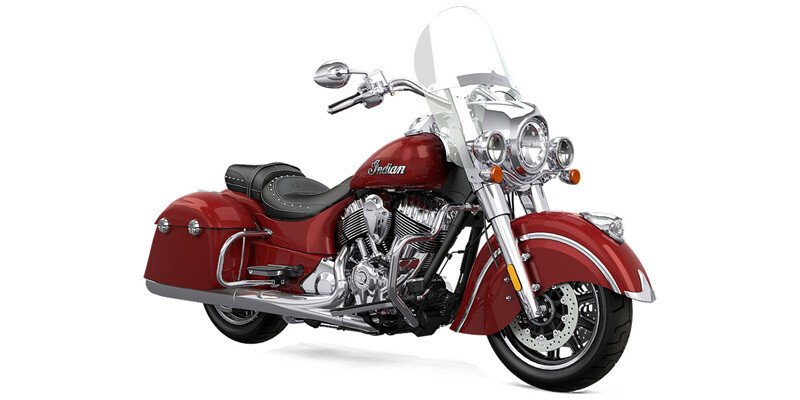

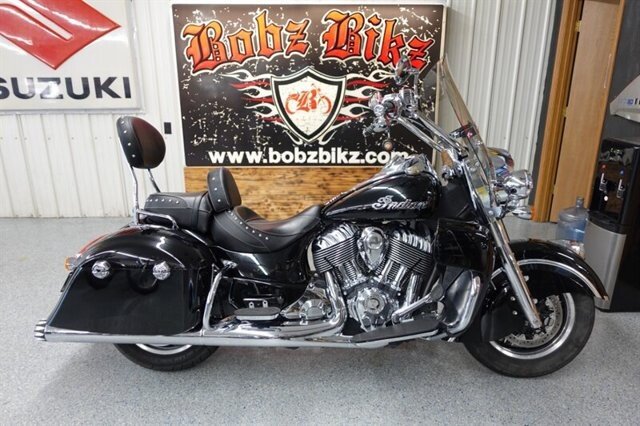

2016 Indian Springfield Base Specifications

Vehicle Specifications

2016 Indian Springfield Base

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.5
• Fuel Capacity (l)
  20.8
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  67
• Wheelbase (mm)
  1701
• Compression Ratio
  9.5:1
• Cylinders
  2
• Displacement (cc)
  1811
• Engine Brand Name
  Thunder Stroke™ 111
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  119.2
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Touring
• Revision Status
  New
• MSRP
  20999
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  26
• Seat Height (mm)
  660
• Tachometer
  Standard
• Front Tire (Full Spec)
  Dunlop® Elite 3 130/90 - 16 73H
• Rear Tire (Full Spec)
  Dunlop® Elite 3 180/60 - 16 80H
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
