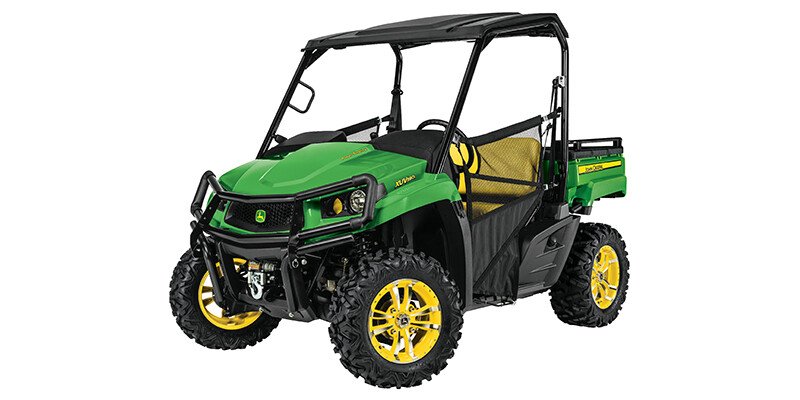

2016 John Deere Gator Power Steering Specifications

Vehicle Specifications

2016 John Deere Gator Power Steering

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  7.4
• Fuel Capacity (l)
  28
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  72.8
• Wheelbase (mm)
  1860
• Compression Ratio
  9.5:1
• Cylinders
  2
• Displacement (cc)
  586
• Engine Brand Name
  Chery
• Engine Stroke
  4-Stroke
• Engine Type
  Horizontal In-line
• Horsepower (bhp)
  32
• Starter
  Electric
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  New
• MSRP
  11159
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Standard
• Front Tire (Full Spec)
  Ancla: 25 x 8-12
• Rear Tire (Full Spec)
  Ancla: 25 x 10-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  576
• Dry Weight (lbs)
  1270
