2016 250 F Factory Edition Specifications

Spec, Photos, and Model Information

  • Displacement (cc)
    249.9

Vehicle Specifications

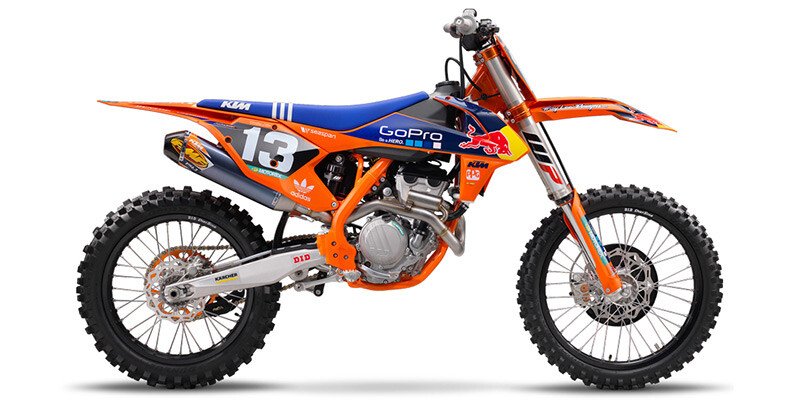

2016 KTM 105SX 250 F Factory Edition

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    1.8
  • Fuel Capacity (l)
    7
  • Carburetion Type
    Fuel Injected
  • Wheelbase (in)
    58.5
  • Wheelbase (mm)
    1485
  • Compression Ratio
    14.4:1
  • Cylinders
    1
  • Displacement (cc)
    249.9
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric
  • Valve Configuration
    DOHC
  • Generic Type (Primary)
    Off-Road
  • Revision Status
    New
  • Warranty (Months)
    1
  • Number Of Seats
    1
  • Seat Height (in)
    37.8
  • Seat Height (mm)
    960
  • Front Tire (Full Spec)
    DunlopĀ® GEOMAX MX32 80/100 R21 51M
  • Rear Tire (Full Spec)
    DunlopĀ® GEOMAX MX32 100/90 R19 57M
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Manual
  • Dry Weight (kg)
    98.5
  • Dry Weight (lbs)
    217.2
  • Windshield
    Not Available
