2016 65 Specifications

Spec, Photos, and Model Information

  • Displacement (cc)
    64.9

Vehicle Specifications

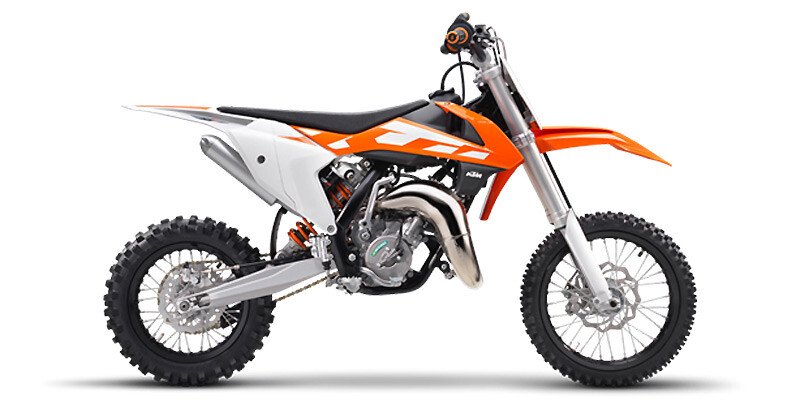

2016 KTM 105SX 65

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    0.9
  • Fuel Capacity (l)
    3.5
  • Carburetion Type
    Carburetor
  • Wheelbase (in)
    44.8
  • Wheelbase (mm)
    1137
  • Cylinders
    1
  • Displacement (cc)
    64.9
  • Engine Stroke
    2-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Kick
  • Valve Configuration
    Reed Valve
  • Generic Type (Primary)
    Youth
  • Revision Status
    Carryover
  • Warranty (Months)
    1
  • Number Of Seats
    1
  • Seat Height (in)
    29.5
  • Seat Height (mm)
    750
  • Front Tire (Full Spec)
    Maxxis® Maxx Cross SI 60/100 R14 30M
  • Rear Tire (Full Spec)
    Maxxis® Maxx Cross SI 80/100 R12 41M
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Manual
  • Dry Weight (kg)
    53
  • Dry Weight (lbs)
    116.8
  • Windshield
    Not Available
