2016 350 F W Specifications
Spec, Photos, and Model Information
-
Displacement (cc)349.7
Vehicle Specifications

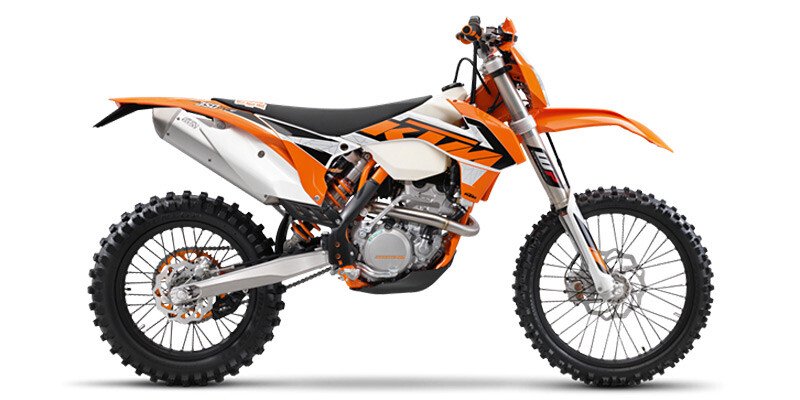

2016 KTM 105XC 350 F W
-
Front Brake TypeHydraulic Disc
-
Rear Brake TypeHydraulic Disc
-
Fuel Capacity (gal)2.3
-
Fuel Capacity (l)8.5
-
Carburetion TypeFuel Injected
-
Digital InstrumentationStandard
-
Wheelbase (in)58.4
-
Wheelbase (mm)1482
-
Compression Ratio12.3:1
-
Cylinders1
-
Displacement (cc)349.7
-
Engine Stroke4-Stroke
-
Engine TypeSingle-Cylinder
-
StarterElectric / Kick
-
Valve ConfigurationDOHC
-
Generic Type (Primary)Off-Road
-
Revision StatusCarryover
-
Warranty (Months)1
-
Number Of Seats1
-
Seat Height (in)38.2
-
Seat Height (mm)970
-
Front Tire (Full Spec)DunlopĀ® GEOMAX AT81 90/90 R21 54M
-
Rear Tire (Full Spec)DunlopĀ® GEOMAX AT81 110/100 R18 64M
-
Number Of Speeds6
-
Primary Drive (Rear Wheel)Chain
-
Transmission TypeManual
-
Dry Weight (kg)107.2
-
Dry Weight (lbs)236.3
-
WindshieldNot Available
