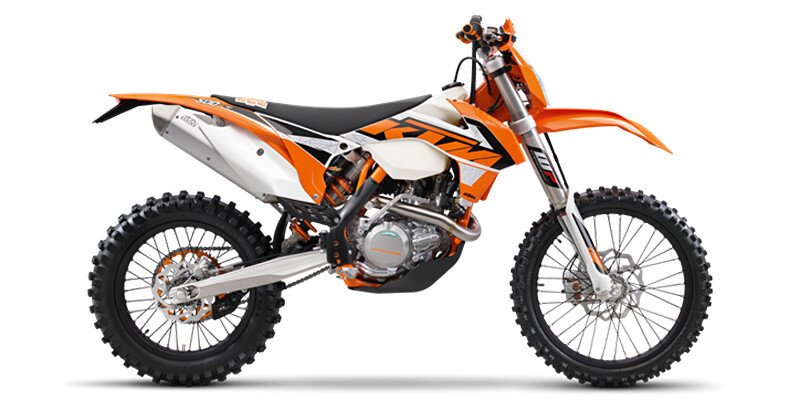

2016 KTM 105XC 500 W Specifications

Vehicle Specifications

2016 KTM 105XC 500 W

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  2.3
• Fuel Capacity (l)
  8.5
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  58.4
• Wheelbase (mm)
  1482
• Compression Ratio
  11.8:1
• Cylinders
  1
• Displacement (cc)
  510.4
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Kick
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  38.2
• Seat Height (mm)
  970
• Front Tire (Full Spec)
  Dunlop® GEOMAX AT81 90/90 R21 54M
• Rear Tire (Full Spec)
  Dunlop® GEOMAX AT81 110/100 R18 64M
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  111.5
• Dry Weight (lbs)
  245.8
• Windshield
  Not Available
