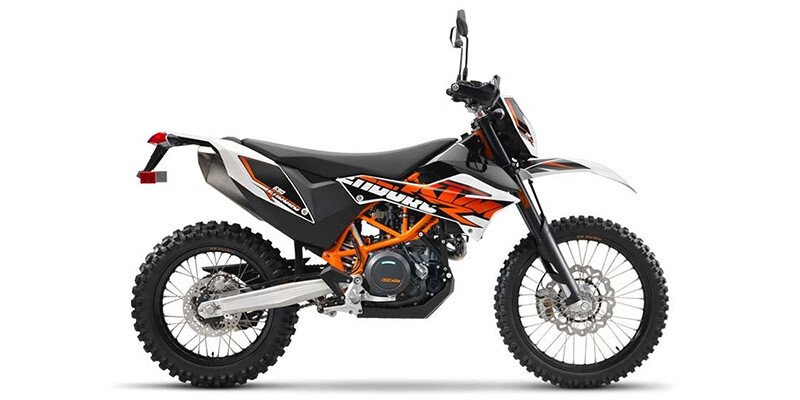

2016 KTM 690 R Specifications

Spec, Photos, and Model Information

  • Displacement (cc)
    690
  • Horsepower (bhp)
    66

Vehicle Specifications

2016 KTM 690 R

  • Front Brake Type
    Disc
  • Rear Brake Type
    Disc
  • Fuel Capacity (gal)
    3.2
  • Fuel Capacity (l)
    12
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    59.2
  • Wheelbase (mm)
    1504
  • Compression Ratio
    12.6:1
  • Cylinders
    1
  • Displacement (cc)
    690
  • Engine Brand Name
    LC4
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Horsepower (bhp)
    66
  • Starter
    Electric
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    On-Off Road
  • Revision Status
    Carryover
  • Warranty (Months)
    12
  • Number Of Seats
    1
  • Seat Height (in)
    35.8
  • Seat Height (mm)
    910
  • Tachometer
    Standard
  • Front Tire (Full Spec)
    PirelliĀ® MT 21 Rallycross 90/90 R21 54R
  • Rear Tire (Full Spec)
    PirelliĀ® MT 21 Rallycross 140/80 R18 70R
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Manual
  • Dry Weight (kg)
    143
