2016 50 Specifications

Vehicle Specifications

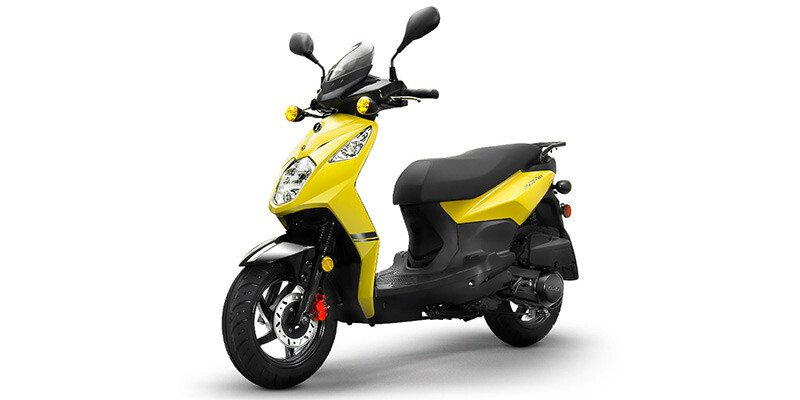

2016 Lance PCH 50 50

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  1.4
• Fuel Capacity (l)
  5.3
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  52.2
• Wheelbase (mm)
  1325.9
• Compression Ratio
  11.8:1
• Cylinders
  1
• Displacement (cc)
  49
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  1.9
• Starter
  Electric / Kick
• Torque (Ft Lbs)
  2.15
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Scooter
• Revision Status
  Carryover
• MSRP
  1499
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  31
• Seat Height (mm)
  787.4
• Tachometer
  Not Available
• Front Tire (Full Spec)
  120/70 R12
• Rear Tire (Full Spec)
  130/70 R12
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  109
