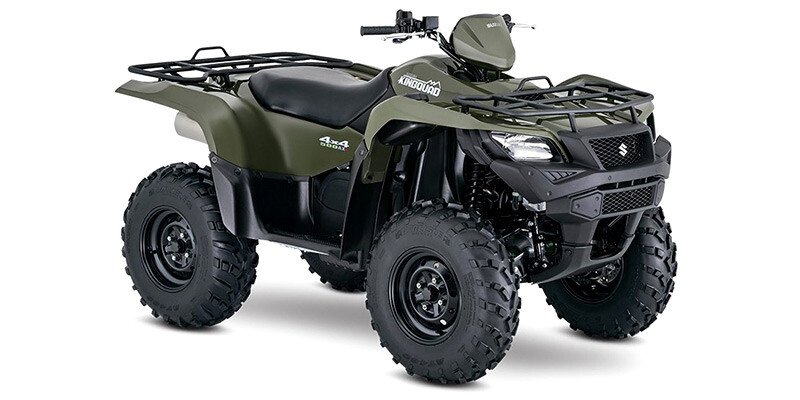

2016 Suzuki KingQuad 500 AXi Specifications

Vehicle Specifications

2016 Suzuki KingQuad 500 AXi

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Sealed Oil Bath Multi-Disc
• Fuel Capacity (gal)
  4.6
• Fuel Capacity (l)
  17.5
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  50.6
• Wheelbase (mm)
  1285
• Compression Ratio
  10:1
• Cylinders
  1
• Displacement (cc)
  493
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  7399
• Warranty (Months)
  12
• Number Of Seats
  1
• Seat Height (in)
  36.2
• Seat Height (mm)
  920
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Carlisle AT 25 X 8-12
• Rear Tire (Full Spec)
  Carlisle AT 25 X 10-12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
