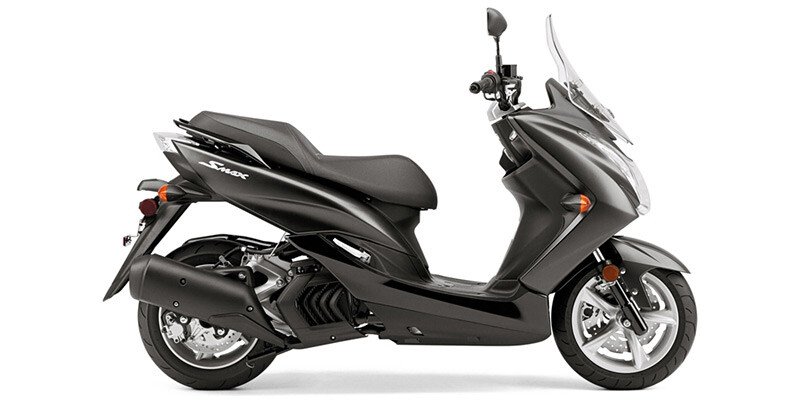

2016 Yamaha SMAX Base Specifications

Vehicle Specifications

2016 Yamaha SMAX Base

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  2
• Fuel Capacity (l)
  7.6
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  55.3
• Wheelbase (mm)
  1404.6
• Compression Ratio
  11.0:1
• Cylinders
  1
• Displacement (cc)
  155
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Scooter
• Revision Status
  Carryover
• MSRP
  3690
• Warranty (Months)
  12
• Number Of Seats
  2
• Seat Height (in)
  31.3
• Seat Height (mm)
  655.3
• Tachometer
  Standard
• Front Tire (Full Spec)
  120/70 R13
• Rear Tire (Full Spec)
  130/70 R13
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Continuously Variable (CVT)
• Windshield
  Standard
