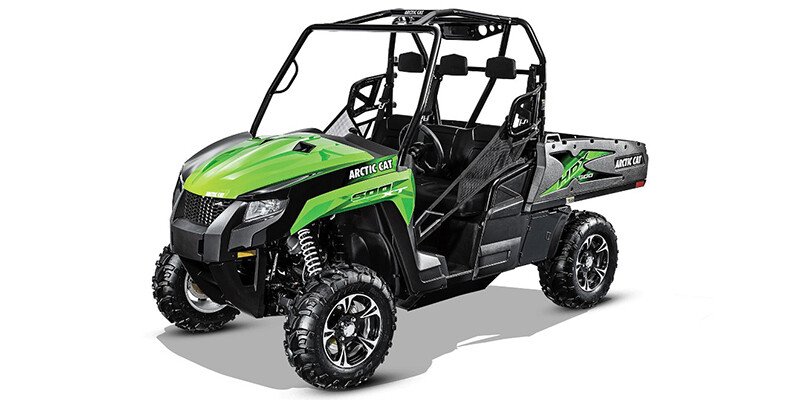

2017 Arctic Cat HDX 500 500 XT Specifications

Vehicle Specifications

2017 Arctic Cat HDX 500 500 XT

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  8.2
• Fuel Capacity (l)
  31
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  85
• Wheelbase (mm)
  2159
• Cylinders
  1
• Displacement (cc)
  443
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  11999
• Warranty (Months)
  6
• Number Of Seats
  3
• Tachometer
  Standard
• Front Tire (Full Spec)
  Duro 3 Star Kaden AT 26 X 9-14
• Rear Tire (Full Spec)
  Duro 3 Star Kaden AT 26 X 11-14
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  618.2
• Dry Weight (lbs)
  1363
