2017 XL Gas 4-Passenger Specifications

Spec, Photos, and Model Information

  • Start Price
    $19,264
  • Displacement (cc)
    675
  • Horsepower (bhp)
    23
  • Torque (Ft Lbs)
    34.2

Vehicle Specifications

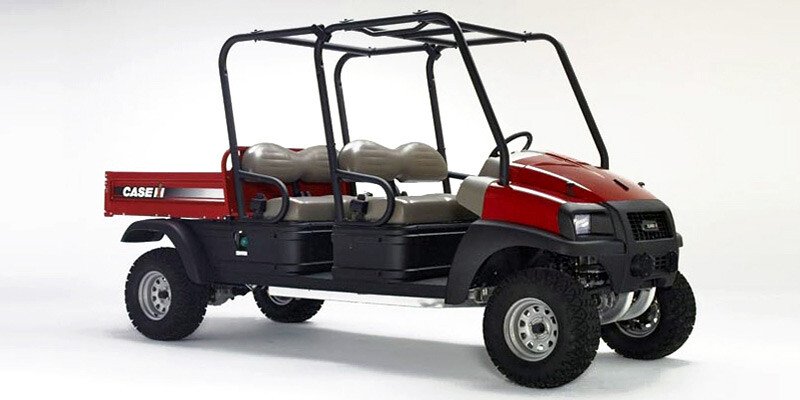

2017 Case IH Scout XL Gas 4-Passenger

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    6.5
  • Fuel Capacity (l)
    24.6
  • Carburetion Type
    Carburetor
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    114
  • Wheelbase (mm)
    2896
  • Cylinders
    2
  • Displacement (cc)
    675
  • Engine Brand Name
    Kawasaki
  • Engine Stroke
    4-Stroke
  • Engine Type
    V Twin
  • Horsepower (bhp)
    23
  • Starter
    Electric
  • Torque (Ft Lbs)
    34.2
  • Valve Configuration
    OHV
  • Generic Type (Primary)
    Utility
  • Revision Status
    Carryover
  • MSRP
    19264
  • Warranty (Months)
    24
  • Number Of Seats
    4
  • Tachometer
    Not Available
  • Front Tire (Full Spec)
    All Terrain: 25 X 10.5 - 12
  • Rear Tire (Full Spec)
    All Terrain: 25 X 10.5 - 12
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    739
  • Dry Weight (lbs)
    1630
