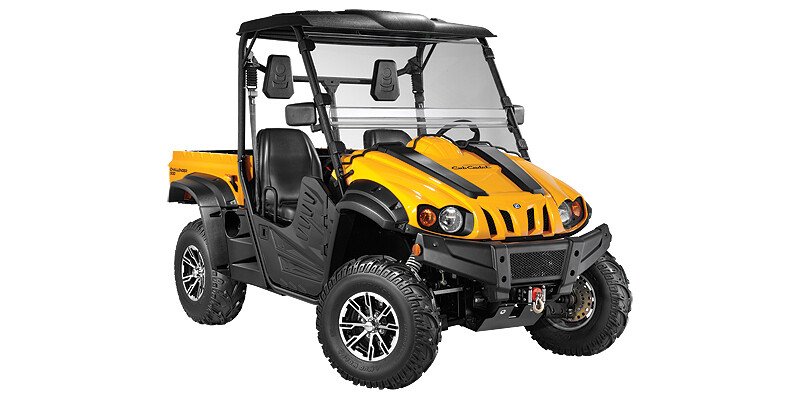

2017 Cub Cadet Challenger 500 Specifications

Spec, Photos, and Model Information

  • Start Price
    $8,499
  • Displacement (cc)
    471
  • Horsepower (bhp)
    22.8

Vehicle Specifications

2017 Cub Cadet Challenger 500

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    7.6
  • Fuel Capacity (l)
    28.8
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    78
  • Wheelbase (mm)
    1981.2
  • Compression Ratio
    9.4:1
  • Cylinders
    1
  • Displacement (cc)
    471
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Horsepower (bhp)
    22.8
  • Starter
    Electric
  • Valve Configuration
    OHV
  • Generic Type (Primary)
    Utility
  • Revision Status
    Carryover
  • MSRP
    8499
  • Warranty (Months)
    12
  • Number Of Seats
    2
  • Tachometer
    Not Available
  • Front Tire (Full Spec)
    Carlisle: 26 x 9-12
  • Rear Tire (Full Spec)
    Carlisle: 26 x 10-12
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    543
  • Dry Weight (lbs)
    1197
  • Windshield
    Standard
