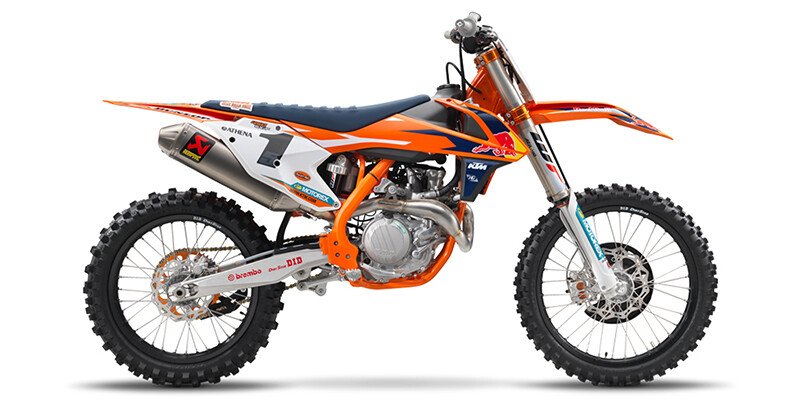

2017 KTM 105SX 450 F Factory Edition Specifications

Vehicle Specifications

2017 KTM 105SX 450 F Factory Edition

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  1.8
• Fuel Capacity (l)
  7
• Carburetion Type
  Fuel Injected
• Wheelbase (in)
  58.5
• Wheelbase (mm)
  1485
• Compression Ratio
  12.8:1
• Cylinders
  1
• Displacement (cc)
  449.9
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  62
• Starter
  Electric
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  37.8
• Seat Height (mm)
  960
• Front Tire (Full Spec)
  Dunlop® GEOMAX MX32 80/100 R21 51M
• Rear Tire (Full Spec)
  Dunlop® GEOMAX MX32 110/90 R19 62M
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  100.4
• Dry Weight (lbs)
  221.3
• Windshield
  Not Available
