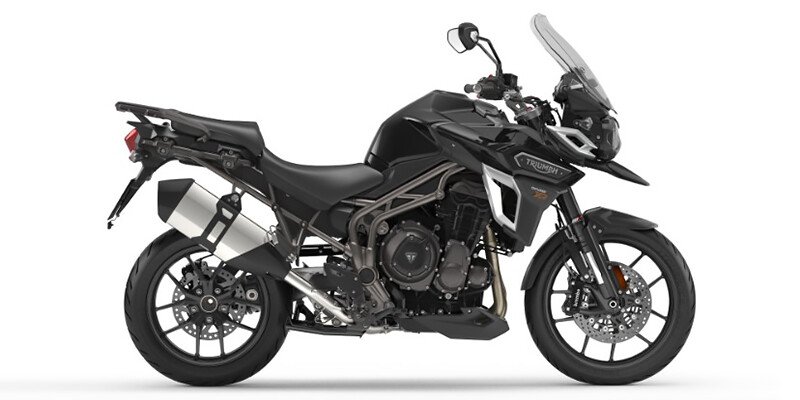

2017 Triumph Tiger Explorer XR Specifications

Vehicle Specifications

2017 Triumph Tiger Explorer XR

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.3
• Fuel Capacity (l)
  20
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  59.8
• Wheelbase (mm)
  1520
• Compression Ratio
  11.0:1
• Cylinders
  3
• Displacement (cc)
  1215
• Engine Stroke
  4-Stroke
• Engine Type
  Horizontal In-line
• Horsepower (bhp)
  137
• Starter
  Electric
• Torque (Ft Lbs)
  90.7
• Valve Configuration
  DOHC
• Generic Type (Primary)
  On-Off Road
• Revision Status
  Carryover
• MSRP
  15900
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  33
• Seat Height (mm)
  837
• Tachometer
  Standard
• Front Tire (Full Spec)
  120/70 R19
• Rear Tire (Full Spec)
  170/60 R17
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
